$134-165 /piece
| Tipo di pagamento: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES |
| Quantità di ordine minimo: | 1 piece |
| Trasporti: | Ocean,Land,Air,Express |
| Porta: | Qing Dao,Shang Hai, Yi Wu |
marchio: Potenza x
Periodo Di Garanzia: 3 anni, 5 ANNI
Applicazione: Giocattoli, Biciclette elettriche / scooter, Gruppi di continuità, Folklift elettrici, Elettrodomestici, Utensili elettrici, Elettronica di consumo, veicoli elettrici, Carrelli da golf, Sedie a rotelle elettriche, BARCHE, Sistemi di alimentazione elettrica, SOTTOMARINI, Settore automobilistico, Sistemi di accumulo di energia solare
Certificazione: ce
Luogo D'origine: Cina
Place Of Origin: Jiangsu, China
Brand Name: Power-X

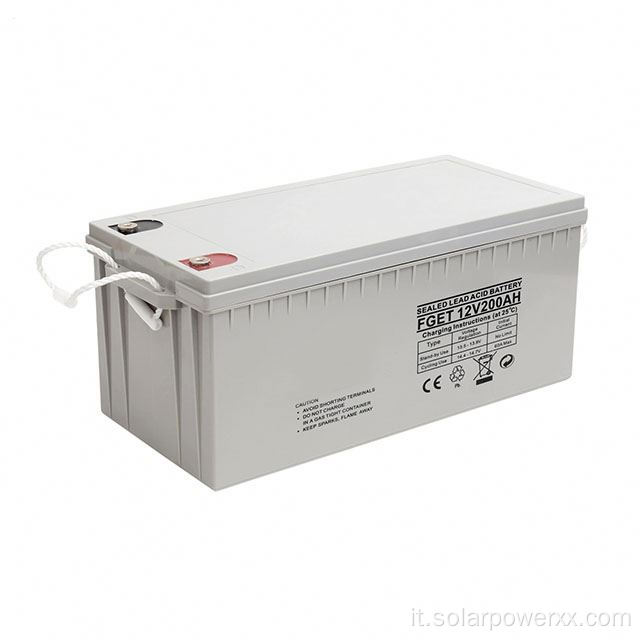

Model Number: POX-12V 250AH
Battery Type: Lead-Acid
Product Name: Energy Storage Battery
Application: Solar Energy Storage Systems
Capacity: 100ah 200ah
Voltage: 12V 12.8V
| Unità vendibili | : | piece |
|

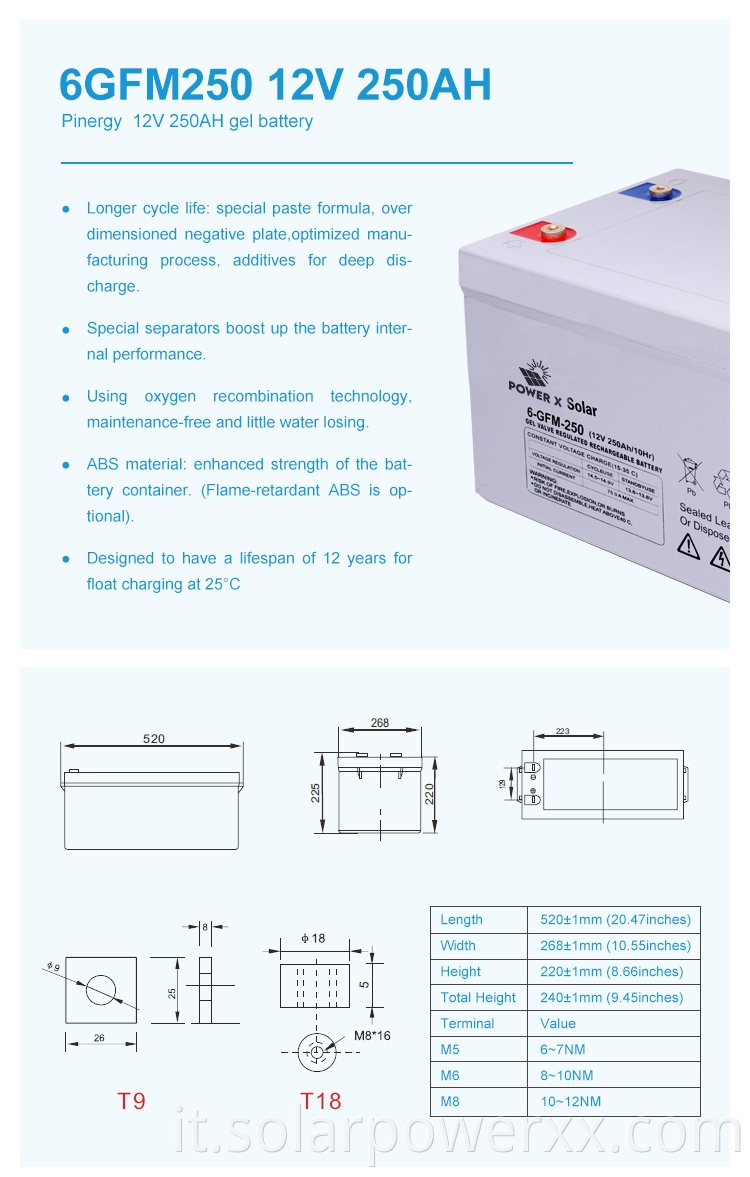

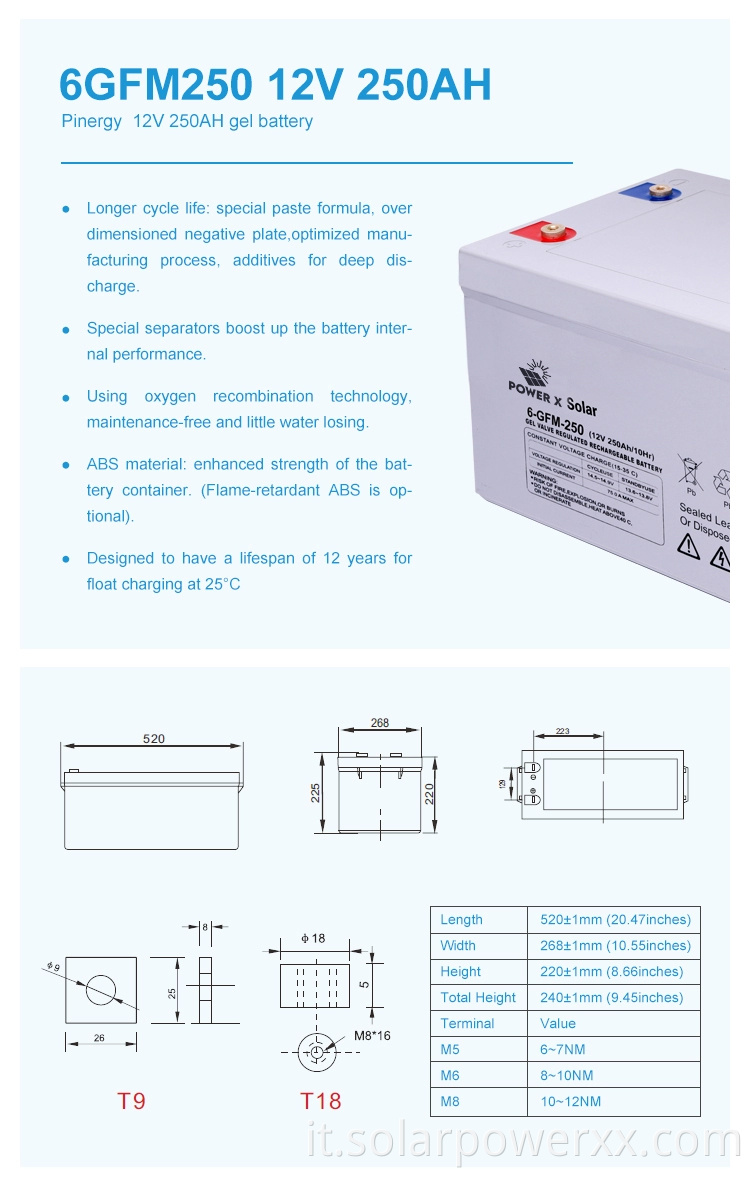

12v Lead Acid Battery Specification
|
|
|
|
|
|||
|
Nominal Voltage
|
12V
|
|
|
|
|||
|
Nominal Capacity (20HR)
|
100AH
|
150AH
|
200AH
|
250AH
|
|||
|
Dimensions
|
L 330* W 173* H 220 mm
|
L 408* W 177* H 225 mm
|
L 522* W 240* H 218 mm
|
L 522* W 268* H 220 mm
|
|||
|
Approx Weight
|
Approx 26.0Kg
|
Approx 37.0Kg
|
Approx 56.0Kg
|
Approx 67.0Kg
|
|||
|
Terminal
|
T11
|
|
|
|
|||
|
|
Discharge : -15 ~50 ºC (5 ~122 ºF)
Charge : 0 ~ 40 ºC (32 ~104 ºF)
Storage : -15 ~40 ºC (5 ~104 ºF)
|
|
|
|
|||
|
Related Capacity
|
104.0 AH/5.20A
(20hr ,1.80V/cell,25 C/77 ºF) 100.0 AH/10.0A (10hr,1.80V/cell, 25 C/77 ºF) 88.0 AH/17.6A (5hr,1.75V/cell, 25 C/77 ºF) 76.2 AH/25.4A (3hr,1.75V/cell, 25 C/77 ºF) 63.8 AH/63.8A (1hr,1.60V/cell, 25 C/77 ºF) |
156.0 AH/7.8A
(20hr ,1.80V/cell,25 C/77 ºF) 150.0 AH/15.0A (10hr,1.80V/cell, 25 C/77 ºF) 129.0 AH/25.8A (5hr,1.75V/cell, 25 C/77 ºF) 117.0 AH/39.0A (3hr,1.75V/cell, 25 C/77 ºF) 91.5AH/91.5A (1hr,1.60V/cell, 25 C/77 ºF) |
208.0 AH/10.4A
(20hr ,1.80V/cell,25 C/77 ºF) 200.0 AH/20.0A (10hr,1.80V/cell, 25 C/77ºF) 172.0 AH/34.4A (5hr,1.75V/cell, 25 C/77 ºF) 156.0AH/152.0A (3hr,1.75V/cell, 25 C/77 ºF) 122.0AH/122.0A (1hr,1.60V/cell, 25 C/77 ºF) |
260.0 AH/13.0A
(20hr ,1.80V/cell,25 C/77 ºF) 250.0AH/25.0A (10hr,1.80V/cell, 25 C/77 ºF) 215.0 AH/43.0A (5hr,1.75V/cell, 25 C/77 ºF) 195.3 AH/65.1A (3hr,1.75V/cell, 25 C/77 ºF) 152.5AH/152.5A (1hr,1.60V/cell, 25 C/77 ºF) |
|||
|
|
Initial Charging Current less than 30.0A.Voltage
14.4V~15.0V at 25ºC (77 ºF)Temp. Coefficient -30mV/ ºC |
Initial Charging Current less than 36.0A. Voltage
14.4V~15.0V at 25ºC (77 ºF)Temp. Coefficient -30mV/ ºC |
Initial Charging Current less than 60.0A. Voltage
14.4V~15.0V at 25ºC (77 ºF)Temp. Coefficient -30mV/ ºC |
Initial Charging Current less than 75.0A. Voltage
14.4V~15.0V at 25ºC (77 ºF)Temp. Coefficient -30mV/ ºC |
|||
|
|
40 ºC (104 ºF) 103%
25 ºC ( 77 ºF) 100%
0 ºC ( 32 ºF) 86%
|
|
|
|
|||
|
Container Material
|
ABS
|
|
|
|
|||
|
Max Discharge Current
|
1000A(5S)
|
1500A (5S)
|
2000A (5S)
|
2500A (5S)
|
|||
